With ultra-durable and professional full keyboard design, stylish appearance and comfortable holding, C1 can operate excellently even under the most extreme conditions without encountering fatigue, which is especially applicable to industrial manufacturing, large-scale warehousing, and logistics distribution.
Reasonable design
3.5 inch, 240×320TFT; color touchscreen
Ultra-durable and professional full keyboard
Comfortable long holding supports working without encountering.
Support double-system, WinCE 6.0 and Android 6.0.
Octa-core 1.3GHz and 1GHz high-speed processors.

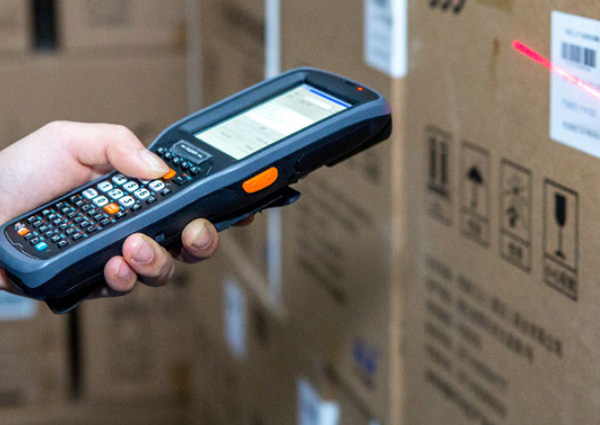

support 1/2D code scanning with ultra-strong decoding capability and quick identification ability.
easily reads the damaged, bent and low quality codes.
Scanning precision：≥ 3 mil
Reading distance：3cm-70cm(Depends on barcode density and code system)
3280mAh dual-core high capacity anti-explosion battery persistently provides power for over 12 working hours.

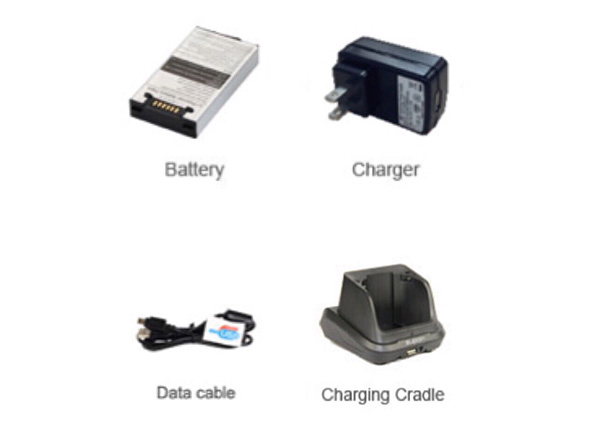

The optional 3280mAh battery and the optional charging-cradle satisfied work in multiple shifts.
Supports 802.11 a/b/g/n full-band wireless communications.
Excellent anti-disturbance performance, stable data transmission.
IP67 industrial grade, bear the height of 2.5m drops waterproof, dustproof.
| Performance parameter | ||
| Processor | TI AM3715 1GHz | Qualcomm Quad core 1.3GHz |
| Operating System | Microsoft Windows CE 6.0 | Android 6.0 |
| Memory | 512MB RAM+512MB ROM | 1G RAM+8G ROM/ 2G RAM+16G ROM |
| Physical parameter | ||
| Display screen | 3.5' 480*640/240*320TFT color touch screen | 3.5' 480*640 capacitance touch HD LCD |
| Camera(optional) | 5 mega pixel | 13 mega pixel |
| Input method | English, Arabic input method, and handwriting input | Supporting install various input method |
| Working time | 10 hours Above 280 hours standby | 8 hours Above 200 hours standby |
| Battery | Unloadable 3.8V 3280/5300mAH/3250mAH in handle lithium battery | |
| Dimensions | 210mm x 79mm x 28mm | |
| Weight | 360g(Standard battery included) | |
| Keyboard | 52/39 regular keys, 1 power switch key, 1 reset key, 2 side keys | |
| Power adapter | Input: AC 100 ~ 220V 50/60HZ; Output: DC 5.5-2.5A | |
| Audio(optional) | 3.5mm stereo headphone jack,speaker | |
| Notification | Speaker, indicator light and vibration | |
| Interface(optional) | MiNi USB 2.0, Micro SD/TF card, SIM(optional),Charging interface | |
| Environmental parameter | ||
| Working temperature | -10℃～50℃ | |
| Storage temperature | -30℃～60℃ | |
| Electrostatic protection | ±15kV air discharge, ±8kV direct discharge | |
| Relative humidity | 5%～95%RH | |
| Height of anti-dropping | 2.5m(On concrete ground) | |
| Strength of anti-rolling | 1m(More than 1000 rolling by impact force) | |
| Protection grade | IP65 grade | |
| Communication data parameter | ||
| WIFI | IEEE 802.11 b/g/n | IEEE 802.11 a/b/g/n |
| WWAN(optional) | Null | GPRS/WCDMA/EVDO/TDSCDMA/TDD-LTE/FDD-LTE |
| Bluetooth | Bluetooth 2.1 | Bluetooth 4.0 |
| GPS(optional) | Precision:10m(open sky)(optional for Android OS) | |
| Identification parameter | ||
| Barcode (optional) | 1D Laser/2D image scanning engine Scanning precision：≥ 3 mil Reading distance：3cm-70cm(Depends on barcode density and code system) UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc;PDF417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code,Aztec,Postal Codes: US PostNet; US Planet, UK Postal; Japan Postal Dutch Postal (KIX)etc. | |
| Certification | ||
| Certification | CCC, Rohs, IP65 grade, CE, FCC and ISO9001 | |
