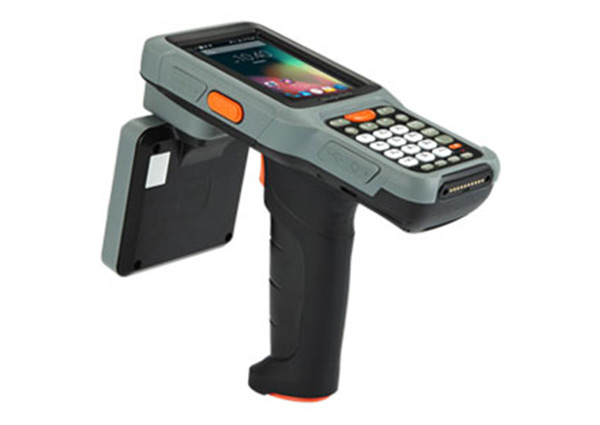

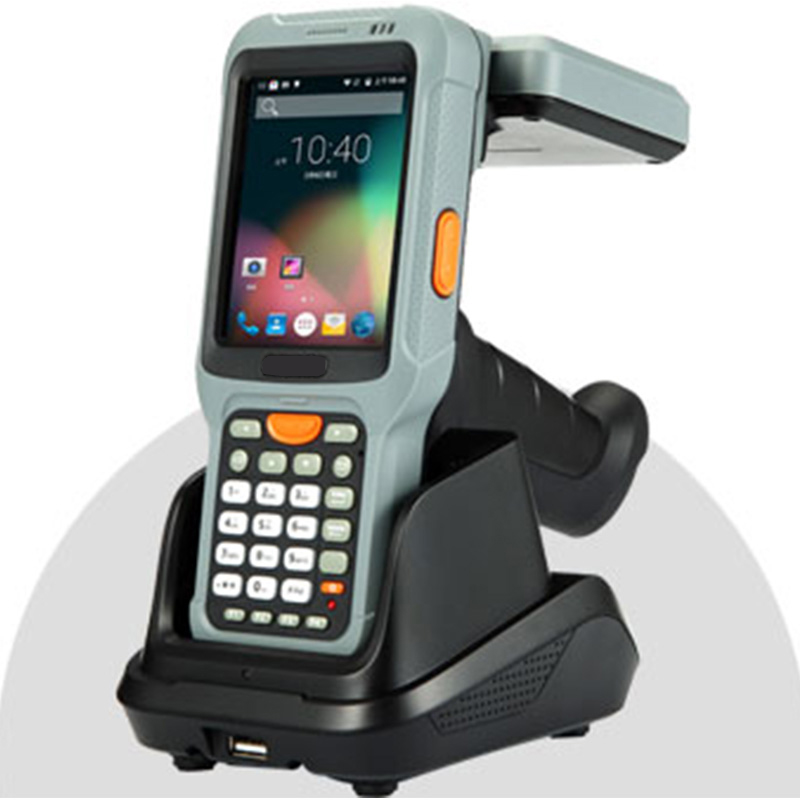

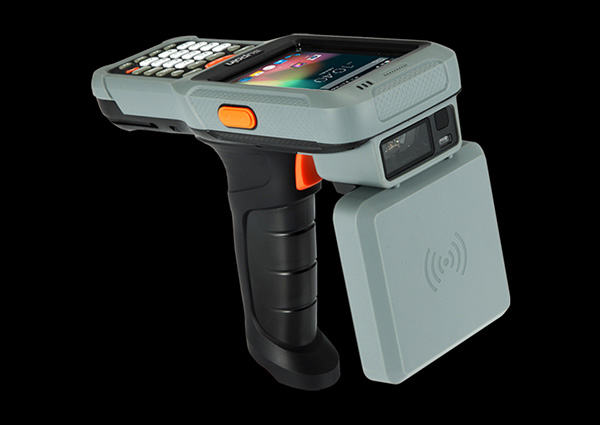

The C2 is a solid and durable industrial RFID mobile terminal. It withstands multiple drops from a height of 1.2m(On wood floor) and over 1000 tumbles within 0.5m, guaranteeing a long service life.
3.5' 240×320TFT; color touchscreen
26 keys, 1 power key, 1 reset key, 2 side scanning keys
Convenient and Comfortable Handle for long time usage

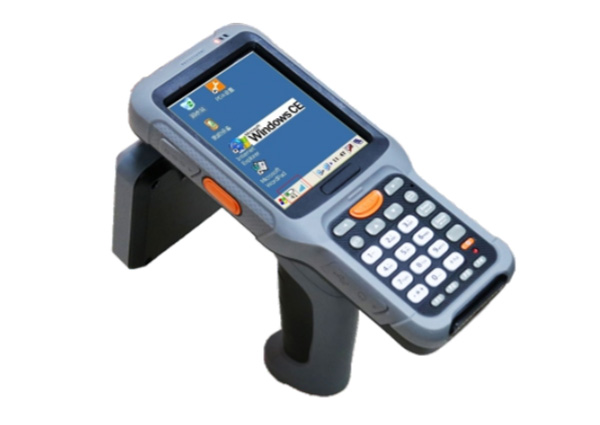

WinCE6.0 operating system,
Texas Instruments AM3715 1GHz high speed processor.

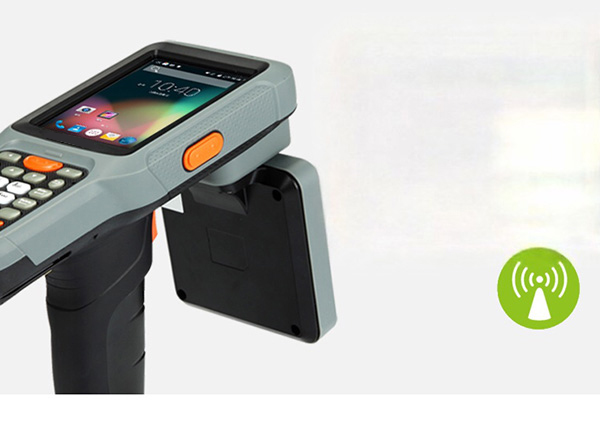

Excellent UHF RFID read/write,read and write distances up to 6 meters.
Congregating identification technology, read large quantities of single tags.
read rate ≥200tags/3s.
1D or 2D scan engine.
5MP Rear camera (optional).

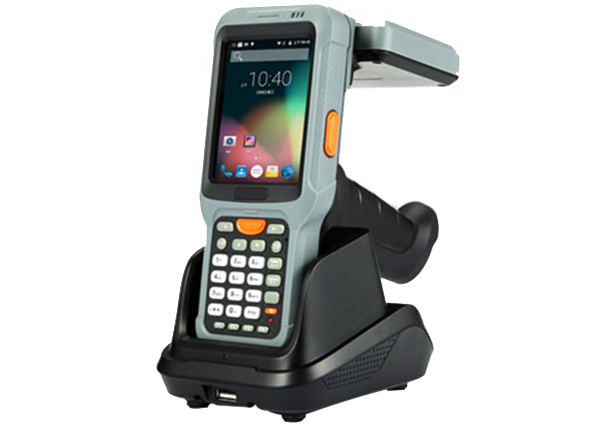

Chargeable dual battery system.
PDA internal battery 2900 mAh with grip battery 3250 mAh can work for more than 12 hours
Supports 802.11 b/g/n full-band wireless communications
maintains real-time connection with the system to ensure high efficient operation
TPU Bi-colors rubber protected body encapsulation
IP67 industrial grade, works well drops from the height of 1.5m.
Peformance Parameter | |
Operating system | Windows CE 6.0 |
Processor | 1 GHz quad-core processor |
Memory | 512MB RAM+512MB ROM |
Physical Parameter | |
Display screen | 3.5' 240×320TFT；color touchscreen |
Cameraloptional) | 5 Mega pixel |
Battery | 3.7V 2900mAH lithium battery, 3250mAH battery for handle |
Dimensions | 179.5mm x 78.18mm x 31.02mm |
Weight | 500g（Handle included）/650g（Handle+UHF reader included） |
Key | 26 keys,1 power key,1 reset key, 2 side scanning keys |
Power adapter | Input: AC 100 ~ 220V 50/60HZ; Output: DC 5.5-2.5A |
Notification | Speaker, indicator light and vibration |
Interface(optional) | MiNi USB 2.0, Micro SD/TF card, SIM(optional), Charging interface |
Environmental Parameter/IP Rate | |
Working Temperature | Working:-20°C - 50 °C |
Storage Temperature | Working:-30°C - 60 °C |
Electrostatic | ±15kV air discharge, ±8kV direct discharge |
Relative humidity | 5% - 95%RH |
Protection grade | IP65 grade |
Anti-dropping | 1.2m (On concrete ground) |
Strength of anti-rolling | 0.5m( 1000 rolling by impact force) |
Communication Data Parameter | |
WIFI | IEEE 802.11 b/g/n |
Bluetooth | Bluetooth 2.1 |
WWAN | 4G: TDD-LTE：B38/B39/B40/B41；FDD-LTE：B1/B3 |
