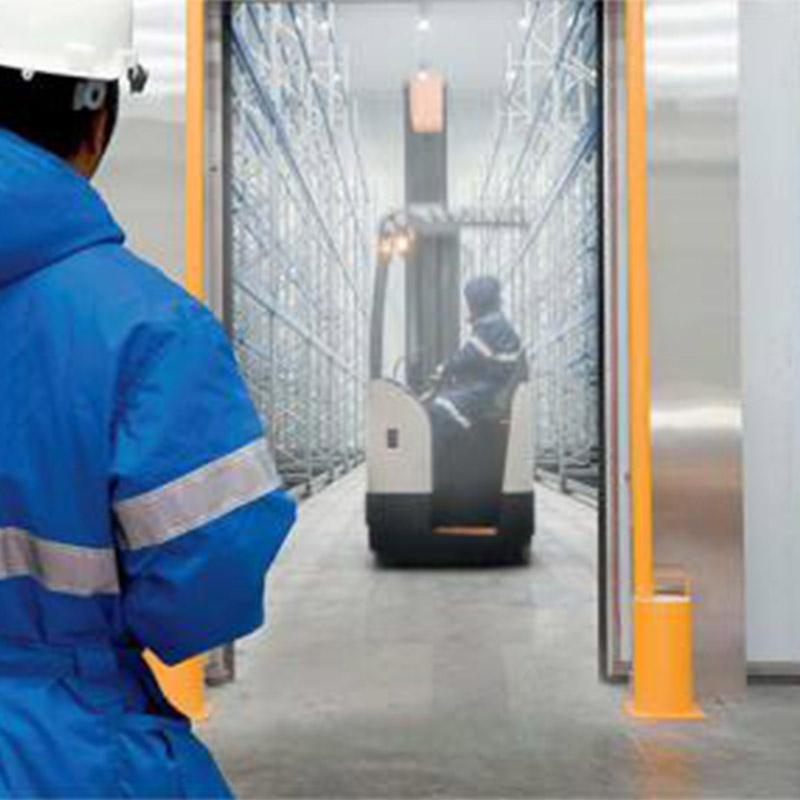

Designed for harsh cold chain storage environments, the S1 can be operated in both refrigerated and refrigerated environments. It features a special anti-fog device and a waterproof, infiltration seal design for the internal structure of the fuselage to avoid instability caused by long-term cold storage operations. Continuous operation in low temperature environments as low as -30 degrees.
Special anti-fog lens
The lens keep clear in the cold storage environment any time;
It can automatically handle the condensation and mist generated by the screen when switching from the cold storage to the normal temperature environment,
The anti-fog lens breaks through the limitations of ordinary PC materials and can be used for a long time.
Generally, the lens made of glass does not have anti-fog function. Entering the cold storage will produce fog and condensation in the lens, which will affect reading. Although the lens made of PC is immersed in a special potion to prevent fogging, it generally loses its effect in about 1 year.
Powerful Data Collection
support 1/2D code scanning with ultra-strong decoding capability and quick identification ability.
easily reads the damaged, bent and low quality codes.
Middle / distance reading/writing ,reach 3m-20m.
Long - lasting and Low temperature resistant battery
PDA internal battery 2900 mAh with grip battery 3250 mAh can work for more than 12 hours
Wireless Connection
Supports 802.11 a/b/g/n full-band wireless communications.
Excellent anti-disturbance performance, stable data transmission.
Industrial Grade Durability
TPU Bi-colors rubber protected body encapsulation
high density magnesium aluminum alloy framework
IP67 industrial grade, bear the height of 2.5m drops and waterproof, dustproof.
| Peformance Parameter | ||
| Operating system | Android 5.1 | WinCE 6.0 |
| Processor | Quad core 1.1GHz | 1GHz |
| Memory | 1G RAM+ 8G ROM | 512MB RAM+512MB ROM |
| 2G RAM+16G ROM | ||
| Physical Parameter | ||
| Display screen | 3.5" 480x640 capacitance touch HD LCD | 3.5" 240x320TFT color touch screen |
| Cameraloptional) | 8 mega pixel | 5 mega pixel |
| Input method | English, Supporting install various input method | English, Arabic input method, and handwriting input |
| Working time | 10 hours. Above 200 hours standby | 10 hours. Above 280 hours standby |
| Battery | Unloadable 3.7V 3800mAH lithium battery | Unloadable 3.7V 3800mAH lithium battery |
| Dimensions | L 179.5mm x W 78.18mm x T 31.02mm | L 179.5mm x W 78.18mm x T 31.02mm |
| Weight | 370glstandard battery included) | 370glstandard battery included) |
| Keyboard | 26 keys,1 power key,1 reset key, 2 side scanning keys | 26 keys,1 power key,1 reset key, 2 side scanning keys |
| Power adapter | Input: AC 100 - 220V 50/60Hz; Output: DC 5.5-2.5A | Input: AC 100 - 220V 50/60Hz; Output: DC 5.5-2.5A |
| Audio(optional) | 3.5mm stereo headphone jack, speaker | 3.5mm stereo headphone jack, speaker |
| Notification | Speaker, indicator light and vibration | Speaker, indicator light and vibration |
| Interface(optional) | MiNi USB 2.0, Micro SD/TF card, SIMloptional], Charging interface | MiNi USB 2.0, Micro SD/TF card, SIMloptional], Charging interface |
| Environmental Parameter/IP Rate | ||
| Working Temperature | Working:-30°C - 50 °C | Working:-30°C - 50 °C |
| Storage Temperature | Working:-40°C - 60 °C | Working:-40°C - 60 °C |
| Electrostatic | ±15kV air discharge, ±8kV direct discharge | ±15kV air discharge, ±8kV direct discharge |
| Relative humidity | 5% - 95%RH | 5% - 95%RH |
| Protection grade | IP67 grade | IP67 grade |
| Anti-dropping | 2.5m|On concrete ground) | 2.5m|On concrete ground) |
| Strength of anti-rolling | 1m(More than 1000 rolling by impact force) | 1m(More than 1000 rolling by impact force) |
| Communication Data Parameter | ||
| WIFI | IEEE 802.11 a/b/g/n | IEEE 802.11 b/g/n |
| Bluetooth | Bluetooth 4.0 | Bluetooth 2.1 |
| WWAN (optional) | GPRS/WCDMA/EVDO/TDS-CDMA/TDD- LTE/FDD-LTE | GPRS/WCDMA/EVDO |
