Zebra’s popular QL? family of direct thermal mobile label and receipt printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn? printers extend these QL-platform benefits to the “nth” power.
STANDARD FEATURES
? Apple iOS, Android, Windows Mobile and BlackBerry connectivity
? Direct thermal printing of barcodes, text and graphics
? CPCL, EPL? and ZPL? programming languages
? 256 MB Flash memory supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
? PowerPrecision+ 4900 mAh Li-Ion rechargeable battery
? Built-in battery charger
? Serial and USB ports (both support strain relief)
? Belt clip for unobtrusive and convenient printing
? Black mark and gap media sensing using fixed center-position sensors
? Easy-to-use peel and present mode
? Label present sensor for issuing labels one at a time
? Tear bar for easy dispensing

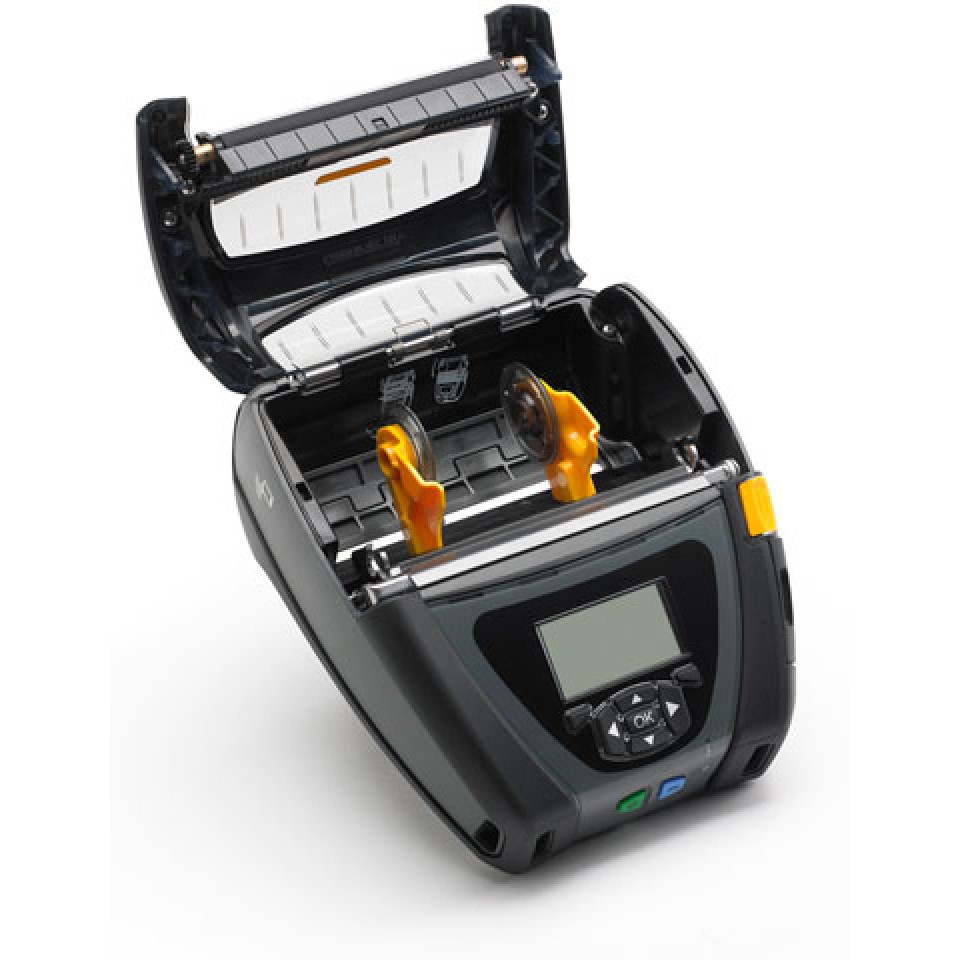

? Center-loading media locking for variable roll widths
? “Clamshell” design for easy media loading
? Management: Mirror, SNMP, Web server, Profile Manager, AirWatch and Wavelink Avalanche?
? Large, easy-to-read LCD control panel (240 x 128 pixels)
? LCD can be customized using WML (text and icons)
? Printer alerts on the display, help menus
? Tolerance of multiple drops from 6' / 1.8 m to concrete
? IP43 dust- and water-resistance rating (IP54 with soft case)
? 400 MHz 32-bit ARM processor
? XML support
? Supports vertical and horizontal printing
? Printers can be used in any orientation
? QR barcode links to web-based help pages
? Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with NFC-enabled devices
? Label odometer
? NTP (Network Time Protocol) support via WiFi or Ethernet
PRINTER SPECIFICATIONS
Resolution | 203 dpi/8 dots per mm |
Memory | 128 MB RAM, 256 MB Flash (standard) |
Maximum Print Width | 4.1"/104 mm |
Maximum Print Speed | Up to 4"/102 mm per second |
Media Sensors | Black mark and gap media sensing using fixed center- position sensors; label present sensor for issuing labels one at a time |
Print Length | Minimum: 0.5"/12.7 mm, Maximum: 32"/813 mm |
Power | PowerPrecision+ 4900 mAh Li-Ion rechargeable battery |
MEDIA CHARACTERISTICS
Maximum Label and Liner Length | 0.5"/12.7 mm to 32"/813 mm or continuous |
Maximum Media Width | 2.0"/51 mm to 4.4"/112 mm |
Maximum Media Roll Size | 2.6"/66 mm O.D. on a 0.75"/19 mm or 1.375"/34.9 mm I.D. core |
MEDIA CHARACTERISTICS (continued)
Thickness | 3.2 mil to 7.5 mil |
Media Types | Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing |
OPERATING CHARACTERISTICS
Environmental | Operating Temperature: -4oF to 122oF/-20oC to 50oC Operating Humidity: 10% to 90% non-condensing Storage Temperature: -13oF to 158oF/-25oC to 65o C Storage Humidity: 10% to 90% non-condensing |
Agency Approvals | Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5 Safety: CE, UL, TUV, CSA |
PHYSICAL CHARACTERISTICS
Length | 3.25"/82.5 mm |
Width | 6.5"/165 mm |
Height | 7.35"/187 mm |
Weight | 2.45 lbs/1.1 kg with battery |
COMMUNICATION AND INTERFACE CAPABILITIES
ZebraNet 802.11a/b/g/n radio with support for:
? WEP, TKIP and AES encryption
? WPA and WPA2
? 802.1x (with WEP, WPA or WPA2)
? EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
? 802.11d and 802.11i
? Simultaneous Bluetooth 3.0 dual radio
? Wi-Fi Certification
? Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), or EAP Fast Session resumption
? Support for Ad Hoc mode
Bluetooth 3.0 radio
? Security modes 1 – 4
? “Made for iPod/iPhone/iPad” certified
? Key Bonding
10/100 Ethernet support (via charging cradle)
Cabled Communications Specifications
? USB 2.0 full-speed interface (12 Mbps)
? Mini-B connector with optional strain relief
? Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps
SOFTWARE TOOLS
Link-OS Solutions
Document Design — Quickly design a customized print solution using your business data and Zebra’s intuitive, plug-and-print design tools.
Device Integration — Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
Device Management — Manage your print operations locally and globally with Zebra’s suite of device management tools.
Developer Tools — Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.
FIRMWARE
CPCL, EPL and ZPL programming languages
ZBI 2.x? — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more
