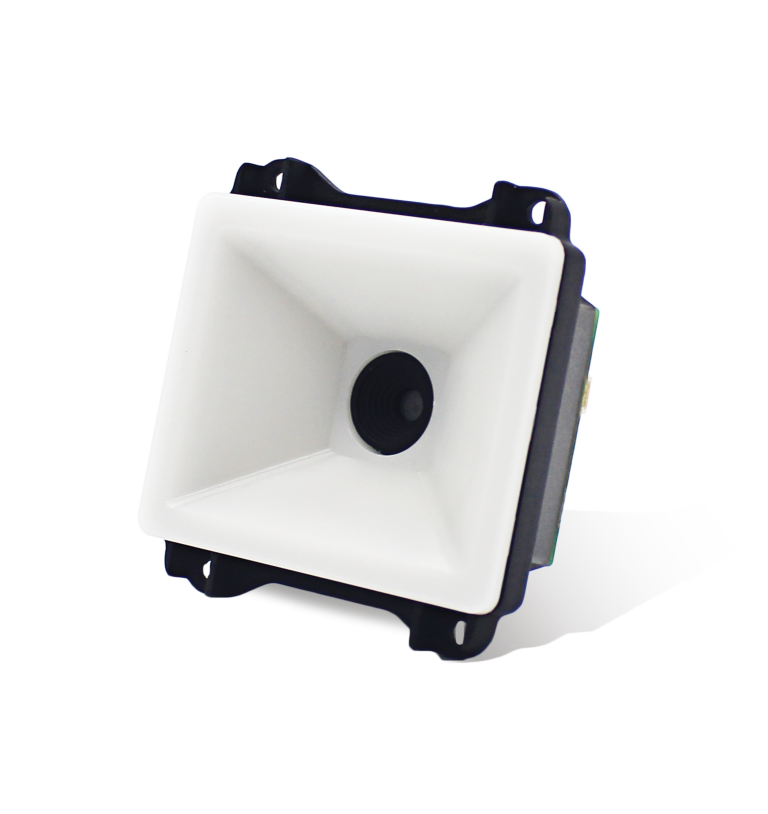

As the newest member in the EM20 series, the EM20-80 is quicker and more compact than ever. With easy barcode reading from screen and a wide angle, there is no doubt that the EM20-80 is ready for whatever barcode is presented to it.
| Performance | Image Sensor640x480 CMOSIlluminationWhite LEDDepth of Field EAN13 (13mil)25mm-110mmDepth of Field PDF417 (6.67mil)35mm-45mmDepth of Field Data Matrix (10mil)35mm-50mmDepth of Field QR (15mil)0mm-90mmMinimal Print Contrast30%Scan Angle Roll360°Scan Angle Pitch±40°Scan Angle Skew±45°Field of View Horizontal68°Field of View Vertical51° |
| Data capture | 1DEAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K2DPDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One |
| Physical | Dimensions (mm)61.5(W)x65.5(D)x31.9(H)mm (max)Weight33gInterfacesTTL-232, RS-232, USBNotificationsBeeper, Green LED IndicatorInput Voltage12-pin FPC connector: 3.3-5VDC±5% 4-pin box connector: 3.3-5VDC±5%Current @ 3.3VDC Operating335mA (typical), 479mA (max)Current @ 3.3VDC Standby93mACurrent @ 5VDC Operating237mA (typical), 319mA (max)Current @ 5VDC Standby69mAPower Consumption3.3VDC: 1103mW (typical) 5VDC: 1129mW (typical) |
| Environmental | Ambient Light0~100,000lux (natural light)Operating Temperature-40°C to 60°CStorage Temperature-40°C to 75°CHumidity5% to 95% (non-condensing) |
| Accessories | OptionalUSB, RS-232, DC5V power adapter with RS-232 cableStandard180mm FFC |
| Device Management | SoftwareEasySet (configuration) |
| Certifications | CertificationsFCC Part15 Class B, CE EMC Class B |
| Waranty | Warranty2 years |
