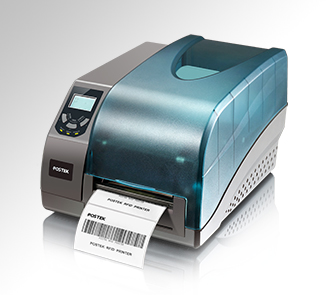

Simplified industrial RFID printer, the unique RFID antenna and pioneering RFID module ensure accurate printing and encoding, as well as enabling a 12mm minimum inlay space.
Innovative design on label detection fixes the antenna on the tear-off position. Since each finished label goes through the printhead, it can be read to detect defective labels.
Advanced design allows printing on labels without a margin, resulting in no wasted white space, hence a total print cost savings.
User-friendly design ensures convenience and proficiency by allowing automatic label size calibration and the ability to easily adjust the antenna position through the setup menu.
| Printing Method | Thermal Transfer |
|---|---|
| Printing Resolution | 203 dpi |
| Max Printing Speed | 6 ips (153 mm/s) |
| Max Printing Width | 4.25″ (108 mm) |
| Max Printing Length | 315″ (8000 mm) |
| RFID | Integrated UHF Reader/Encoder, EPC Gen 2 Class1 / ISO 18000-6C |
| Memory | 8 MB FLASH ROM, 16 MB SDRAM |
| HEAT? Level | Ⅱ |
| Media | Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper. |
| Ribbon | Wax, Wax/Resin, Resin |
| Media Sensor | Reflective (Adjustable) / Transmissive（Multiple Mounting Positions) |
| Fonts | Five built-in dot martrix ASCII fonts, Downloadable TrueType fonts |
| Barcode Types | 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128; 2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code. |
| Interfaces | RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, Centronics Parallel(Optional) |
| Power Rating | 110/240 VAC±10%, 50/60 Hz |
| Weight | 3.5 kgs |
| Dimensions | W 259 mm x D 354 mm x H 205 mm |
| Operating Environment | Temperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing |
| Storage Environment | Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing |
| Optional Items | Rotary Cutter, External Rewinder, Centronics Parallel, External Media Stand, Peeler |
