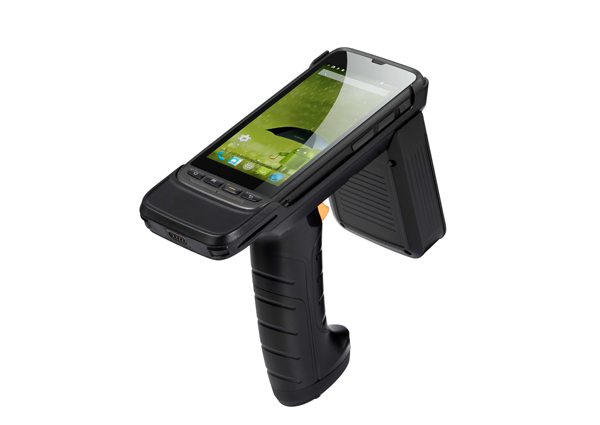

Based on Unimes U10's newly upgaded UHF enterprise mobilepplication handheld device, equipped wth high-perfor-mance UHF red and write modules, read/wrte infomationis faster and more accurate, Large capacity battery andexcellent coling effect to ensure that users continue ef-cient and stable operation; Fiexible structure, fully meet the needs of different scenarios

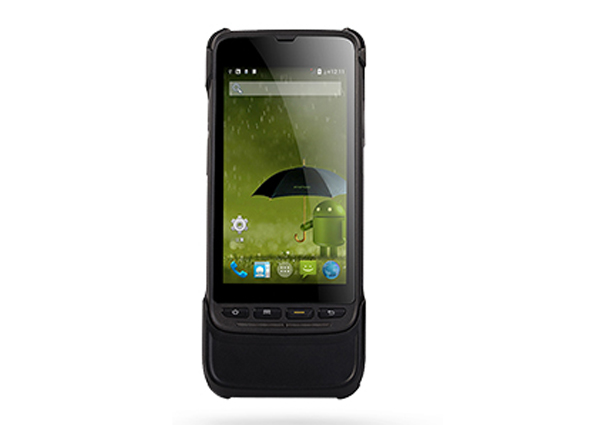

4.7inch large, 1280 x 720 High resolution screen supports operating with gloves or wet hands.

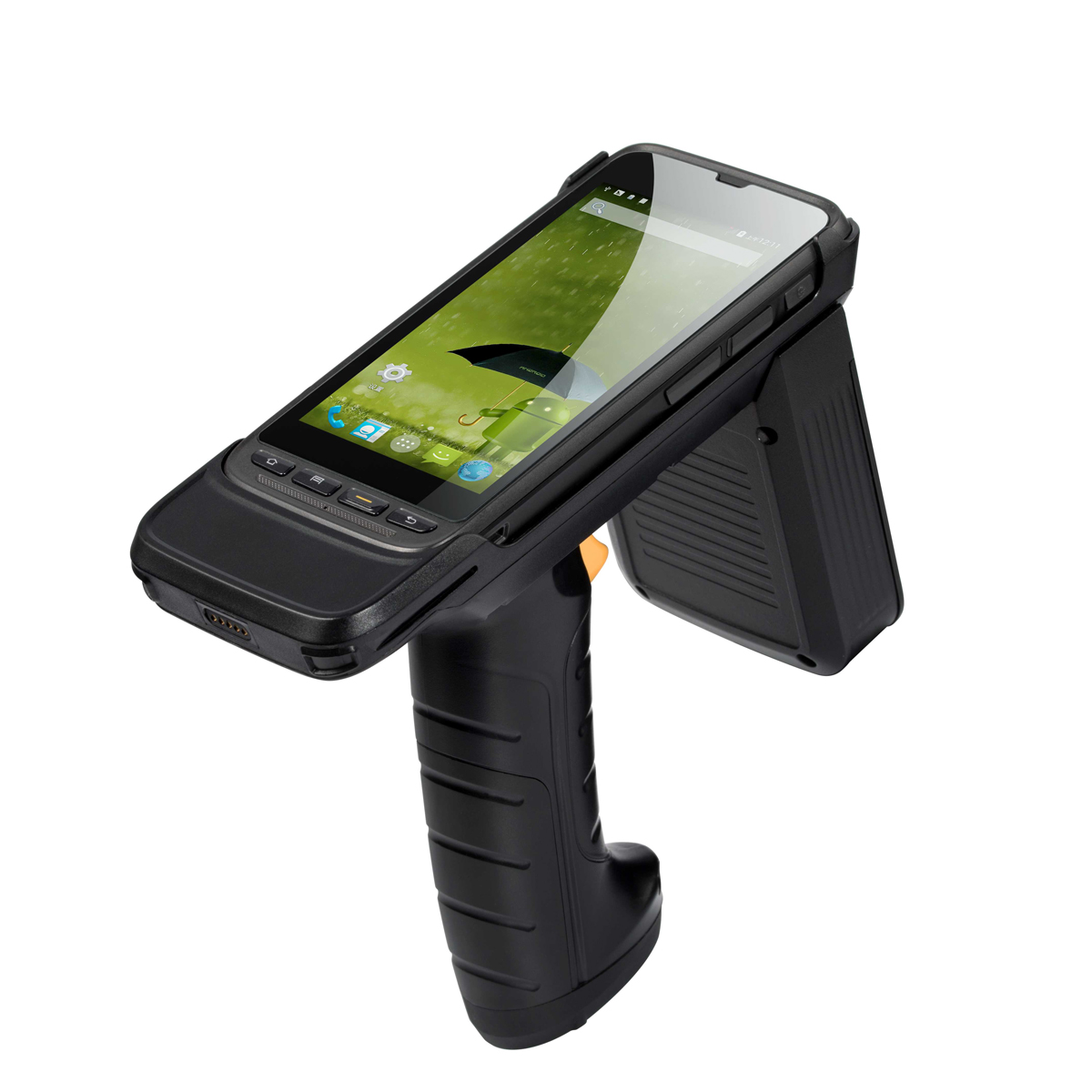

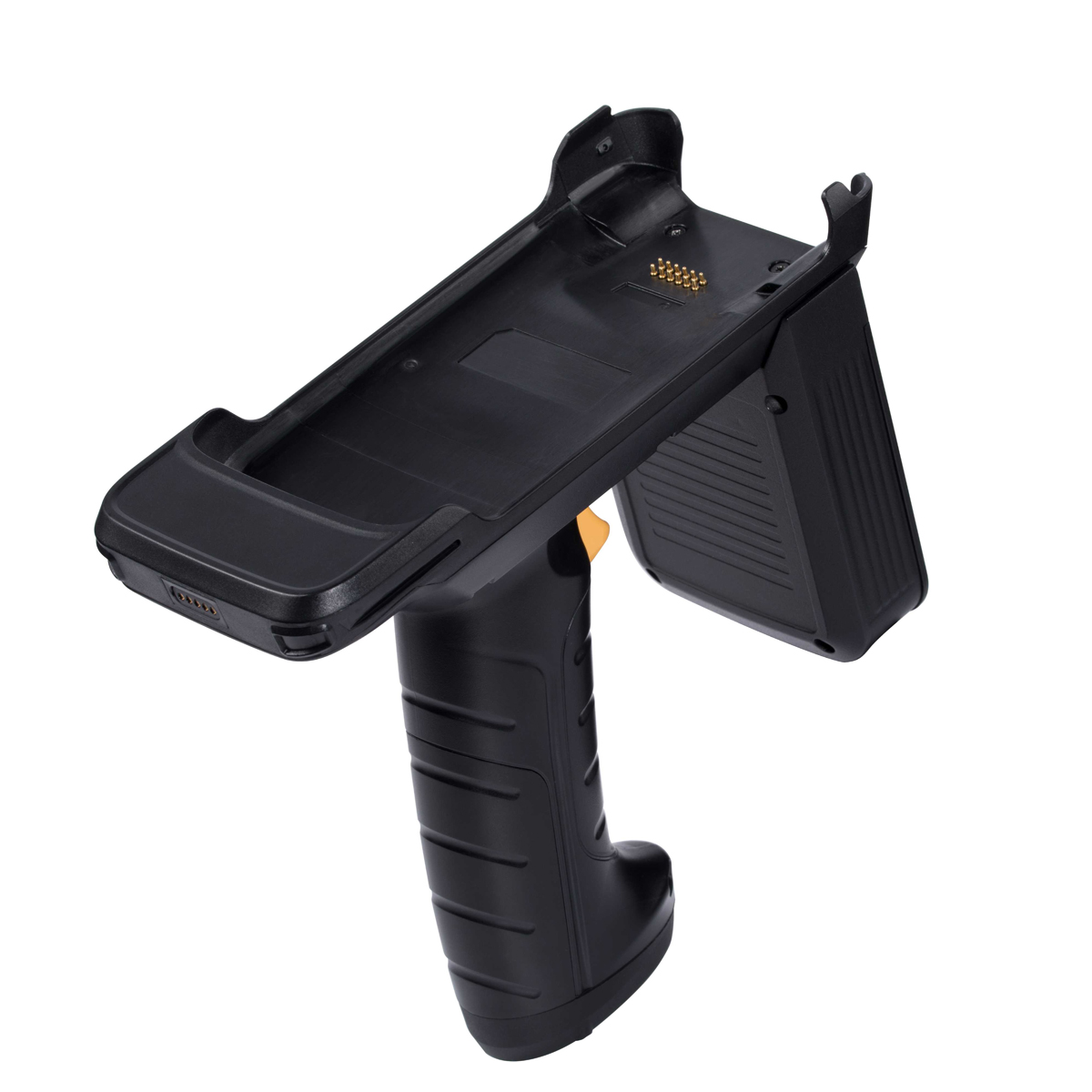

Convenient and Comfortable Handle for long time usage

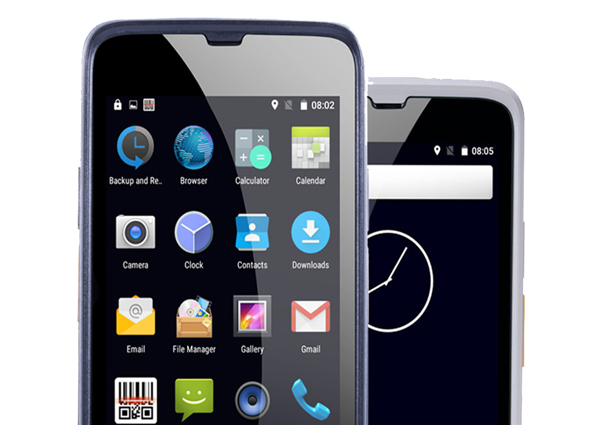

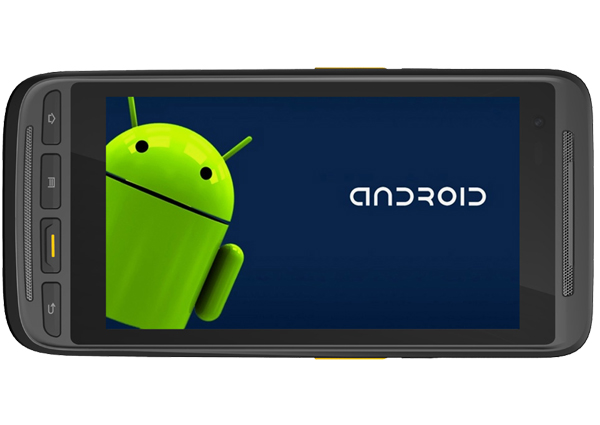

Android 6.0 operating system, quad-core processor to provide top speed operation platform.
Excellent UHF RFID read/write, read and write distances up to 10 meters.
read rate ≥200tags/s.

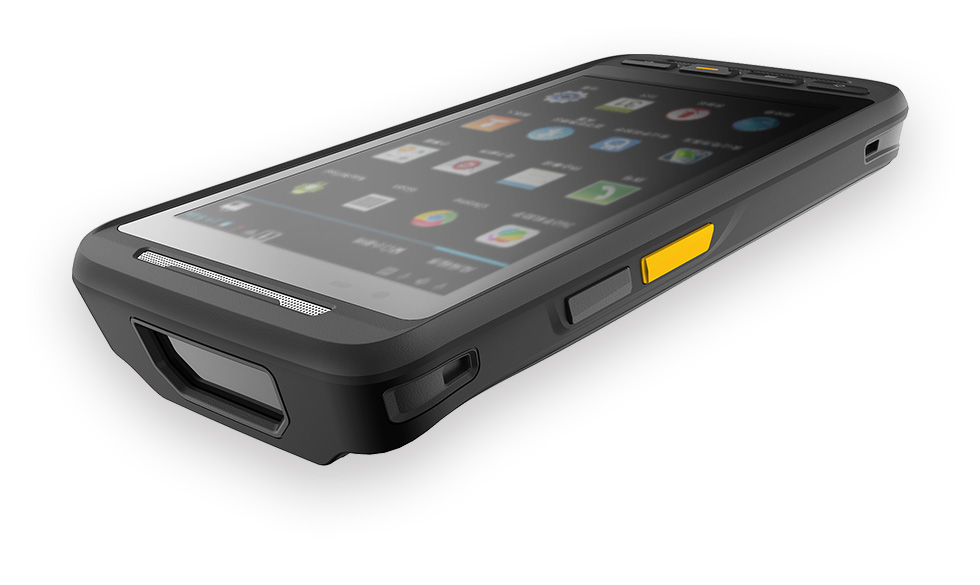

1D or 2D scan engine.
13.56MHz NFC, read up to 30 mm(optional).
8MP Rear camera (optional).GPS (optional).
PDA internal battery 3300 mAh with grip battery 5200 mAh, can work for more than 12 hours
The optional 3.7V,3300mAh battery satisfied work in multiple shifts.
Faster and More Stable Wireless Data Transmission.
FDD-LTE/TD-LTE 4G wireless communication
5G WIFI transmission technology
IP65 protection grade, 1.5 - meter drop standard on cement
Weighs 230g,easy to carry.
System Configuration
| CPU: | Quad-core 1.25 GHz high performance CPU |
| Operating System: | Android 6.0 |
| Memory: | 16 GB ROM+2 GB RAM |
| Expansion Slot: | Micro SD card（can extend to 32G） |
| Screen: | 4.7 inch, 1280 x 720 high resolution LCD |
| Touch Panel: | Industrial capacitive touch screen (support operating with gloves) |
| Camera (Optional): | Rear 8 megapixels, auto focus, LED lighting |
| Scanning window glass: | Corning? Gorilla? glass |
| Keypad: | Front side 4 keys, flank 4 keys, battery key (can be set as customized key) |
| Battery: | 3.7 V 3300 mAh lithium polymer battery(PDA) + 3.7V 5200 mAh(handle) |
| Audio: | Built-in Microphone/earphone interface |
| Indicator: | Vibration indicator/LED indicator/Audio indicator |
| Vibration Motor: | Build-in vibrate motor |
| Sensor: | G-Sensor（gravity sensor） |
Operating Environment
| Development Tools: | Android SDK+ JDK+Eclipse |
| Programming Language: | Java |
| Operating Temp.: | -10℃ ~ 50℃ （14℉ ~122℉） |
| Storage Temp.: | -20℃ ~ 60℃ （-4℉ ~140℉） |
| Relative Humidity: | 0 ～ 95% （No condensation） |
| Drop Specification: | Endurable for falling down from 1.2m height to the cement concrete ground many times |
| Protection grade: | IP65 |
| Electrostatic Discharge: | 15 kV air discharge, ±8 kV direct discharge |
Structural Parameters
| Dimensions (LxWxD): | PDA:150 mm x 73.5 mm x 16 mm（head 24mm thick） PDA + handle:175mm x 75mm x 165mm |
| Weight: | PDA（include battery）+ handle（with RFID）750g PDA（include battery）+ handle（without RFID）530g |
Communication Transmission
| WWAN (Network frequency): | Europe: GSM - Quad band support (Band 5/8/3/2) UMTS/HSPA + Primary bands 1/8. Roaming bands 2/5. LTE Bands 1/3/7/8/20 |
| WWAN (Data business): | GPRS/EDGE/ CDMA2000 1x/ EVDO /HSPA+/TDD-LTE/FDD-LTE |
| WLAN: | Wi-Fi 802.11a/b/g/n（dual-band:2.4G+5G） |
| Bluetooth: | Bluetooth 4.0 |
| GPS: | High performance GPS/AGPS navigation chip |
Input/Output Ports
| USB interface: | 1 （Micro USB interface） |
| Charging interface: | 1 |
1D Laser Scanner
| Scanning accuracy: | 5mil |
| Rotate sight: | ±35° |
| Up-dip angle of view: | ±65° |
| Left-right deviation Angle: | ±50° |
| Light: | Sun: 10,000ft. Candles (107,640Lux) Artificial: 450ft. Candles (4,844Lux) |
| Scanning frequency: | 104±12 times/second |
| Laser security grade: | Class II |
| Support barcode: | UPC/EAN, POST, Code 128, Code 39, Code 93, Code 11, Coda bar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSSI etc. |
1D/2D video scanning engine
| Scanning accuracy: | 3mil c39/128 |
| Rotate sight: | 360° |
| Up-dip angle of view: | ±45° |
| Left-right deviation Angle: | ±65° |
| Scanning frequency: | 50ms |
| Laser security grade: | Class II |
| Image resolution: | 844(H)×640(V) |
| Image frame rate: | 60fps |
| Illumination system: | White light, laser aiming |
| Minimum print contrast: | 20% |
| Support barcode: | Aztec Code, Codabar, Codablock F, Code 11, Code 128, Code 2 of 5, Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN 8, EAN-UCC Composite Codes, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI, PDF417, Postal Codes ( Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet ), Plessey Code, PosiCode, QR Code, RSS Expanded, RSS Limited, RSS-14, TCIF Linked Code 39, Telepen, Trioptic Code, UPC-A, UPC-E etc |
RFID （Optional）
| Frequency: | 840-960MHz（Customize according to required band） |
| Communication protocol: | ISO18000-6C/6B, EPC C1 Gen2 |
| Antenna gain: | 3dBi circularly polarized antenna |
| Output power: | 10-30dbm adjustable |
| Recognition distance: | 10m（depends on different labels） |
Accessories

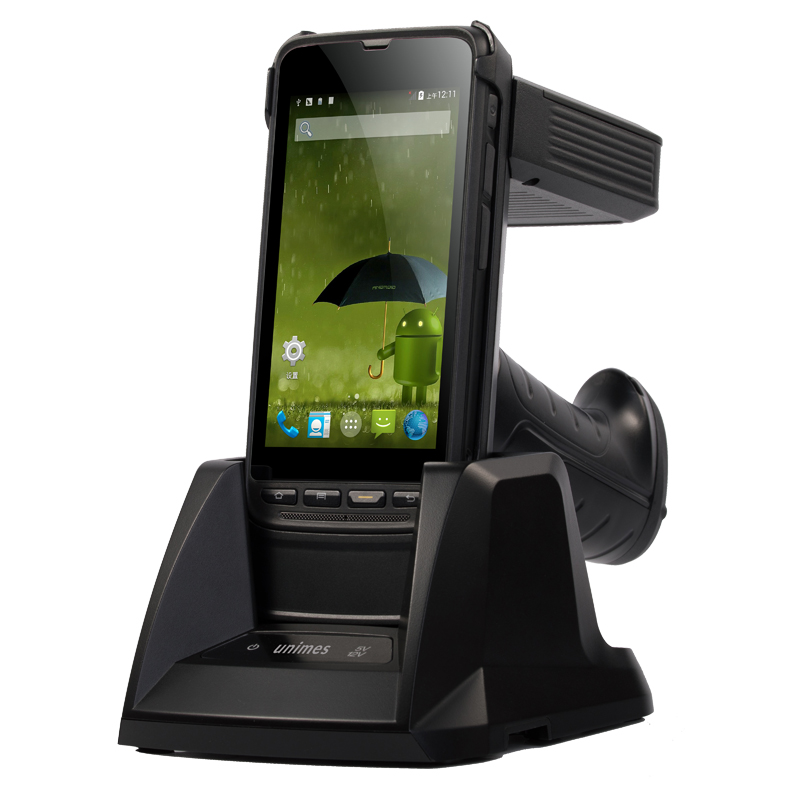

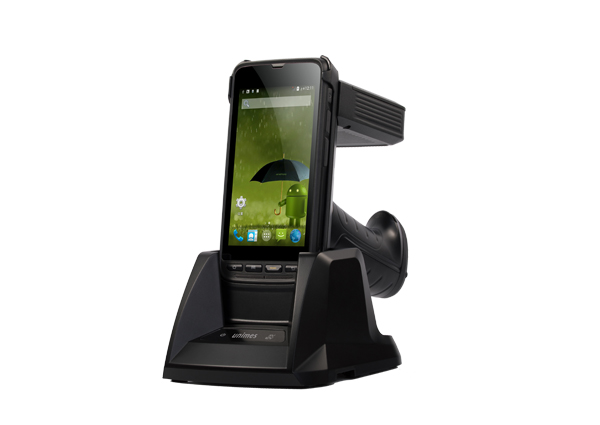

| Standard accessories: | Power adapter, 3-in-1 charge stand |
