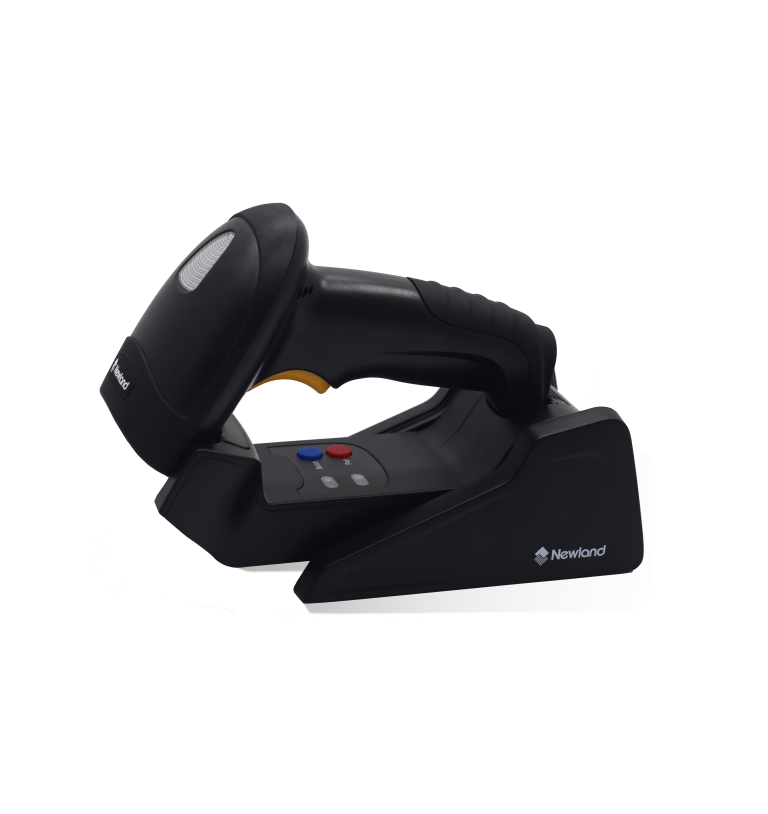

Adopting the latest Bluetooth 5.0 technology, the HR15 BT Wahoo is able to maintain a strong, anti-interference connection to transmit data. Whether mounted vertically or horizontally, upright or flat, the HR15 BT Wahoo is ready to go to work.
| Performance | Memory Flash≥15000 pieces Code 128 (20 byte of each code 128)Image Sensor2500 CCDIlluminationRed LED (622nm-628nm)Depth of Field EAN13 (13mil)55mm-550mmDepth of Field CODE 39 (5mil)90mm-160mmMinimal Print Contrast≥25%Scan Angle Pitch±60°Scan Angle Skew±60° |
| Data capture | 1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. |
| Physical | Dimensions (mm)Scanner: 113.5(W)x73.3(D)x159.0(H)mmWeightScanner: 213gInterfacesRS-232, USBBattery Type2200 mAh lithium-ion batteryExpected Battery Life≥12 hours of continuous operation (scan once per 6 seconds)Expected Charge Time≤4 hours (with power adapter)NotificationsBeep, LED indicatorInput Voltage5VDC±5% |
| Environmental | Operating Temperature-20°C to 50°C (14°F to 122°F)Storage Temperature-40℃ to 70℃ (-40°F to 158°F)Humidity5% to 95% (non-condensing)Electro Static Discharge (ESD)±8KV (air discharge); ±4KV (direct discharge)DropScanner: 1.5m Cradle: 1mSealingIP42 |
| Wireless | WPAN RadioBluetooth 5.0Communication Distance≥50m/164ft (direct line of sight in open air)Communication ModesSynchronous, asynchronous and batch modes |
| Device Management | SoftwareEasySet (configuration) |
| Certifications | CertificationsFCC Part15 Class B, CE EMC Class B |
| Waranty | Warranty3 years |
